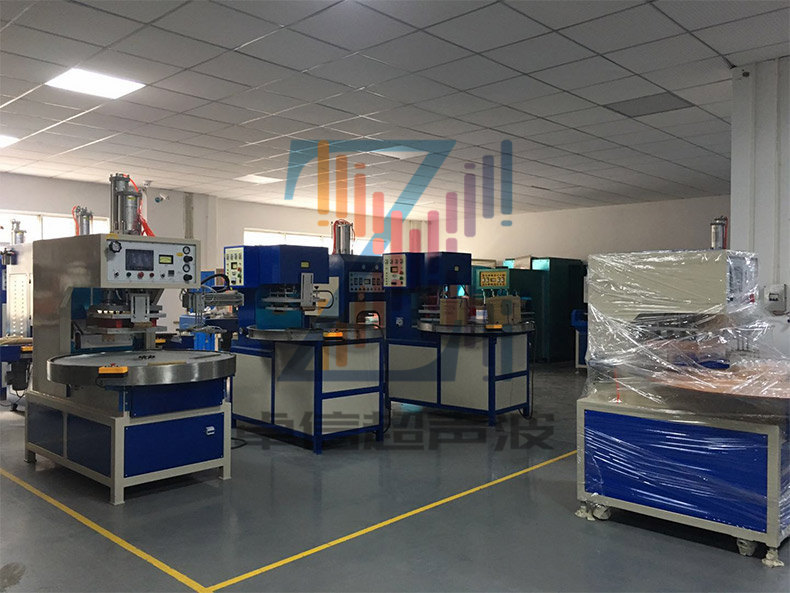

全自动圆盘式高周波熔接机

机器特点
•机器设计为自动圆盘式，可一人操作多个工位，提高效率，节省人工；
•可选配送料和取料机械手等自动化装置，适应流水线生产；
•使用PLC+人机界面，操作简单；
•熔断机带有二次裁切功能，先熔接再切断，满足需要切边的产品；

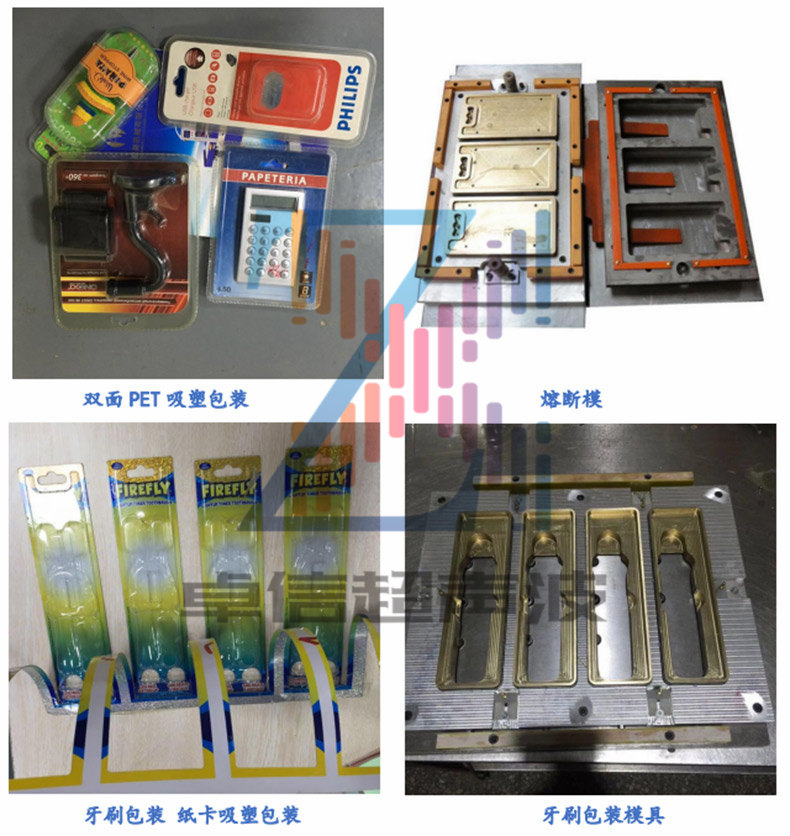

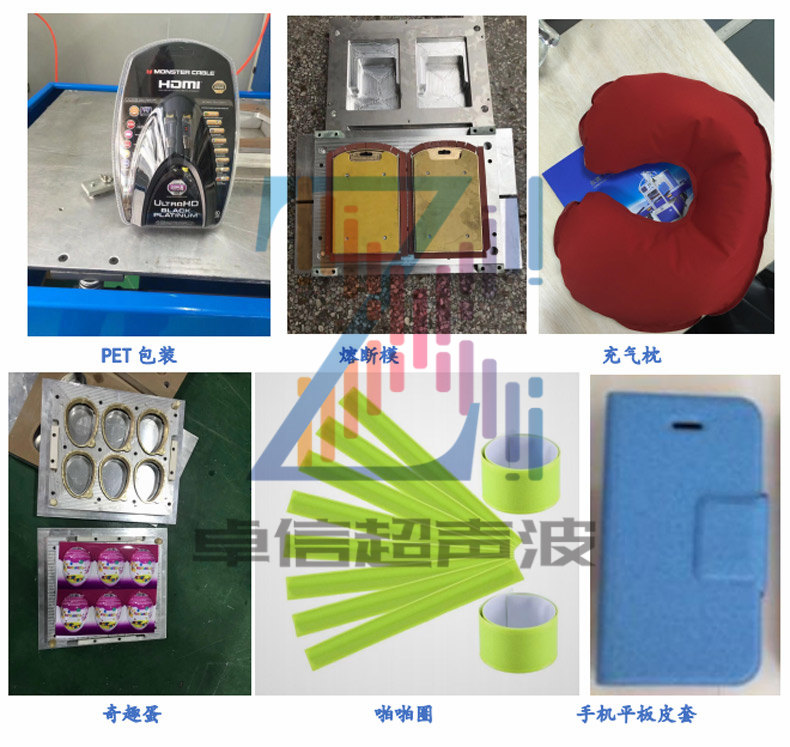

•适用于：两面纸卡吸塑包装；PVC，PET，APET等双面吸塑包装。

Machine Features:
The machine is designed as automatic disc type, which can operate multiple stations by one person to
improve efficiency and save labor
Automatic devices such as feeding and feeding manipulator can be selected to adapt to assembly line production
* PLC+man - machine interface, simple operation

Fuses with secondary cutting function, first welding and then cut off, meet the needs of edge cutting products Suitable for blister packaging of paper cards on both sides; PVC,PET,APET and other double-sided blister packaging

机器参数             Machine parameter

型号                    Model	ZX－8KW－ZDYP	ZX－10KW－ZDYP	ZX－12KW－ZDYP
功率                    Power	8KW	10KW	12KW
电压                    Voltage	220V/380V  3P    50/60Hz
电源入力            Input Power	10KVA	12KVA	15KVA
震荡频率           Oscillation Frequency	27.12MHz
电子管               Oscillation Tube	7T69RB	E3069	E3130
防火花保护       Anti-Spark System	NL-5557
最大压力           Max Pressure	500KG	20Ton	20Ton
圆盘直径           Disc Diameter	1200mm	1300mm	1300mm
工作台面尺寸   Working Table Size	300*450mm	300*450mm	300*450mm
机器尺寸           Machine Size	1600*1260*1750mm	1700*1360*2300mm	1700*1360*2300mm
机器重量           Machine Weight	450KG	1200KG	1500KG
